PPS-24 Vapor Scrubber System

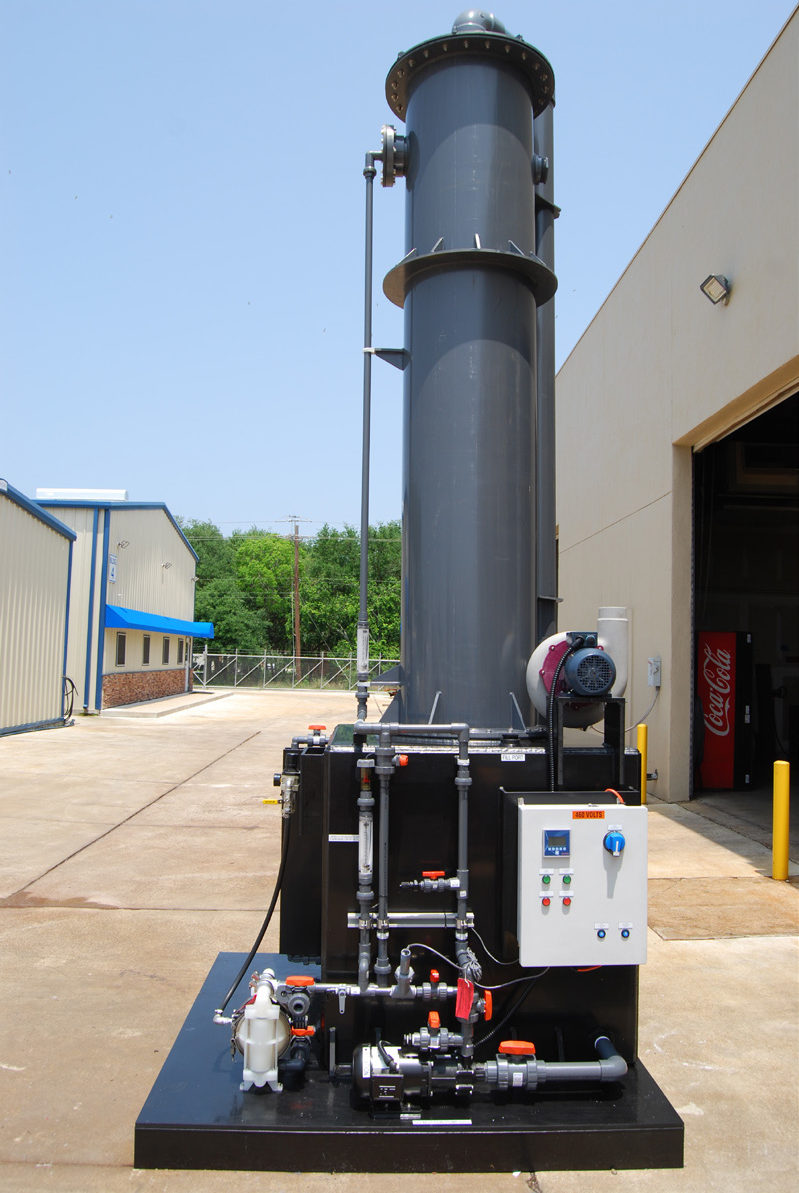

The PPS-24 vapor scrubber unit is an all-poly packed-column vapor scrubber designed for corrosive applications where steel is not suitable (example: acids, chlorinated products). This unit skid mounted and is designed for flows up to 1250 CFM. Unit has main magnetic-drive re-circulation pump and backup air diaphragm pump. Solution reservoir holds up to 450 gallons. Efficiencies as high as 99.99% possible. Options such as pH Control, blowers, level control, immersion heater and more are available. Contact a sales associate for details.

  • Storage Tank Vapor Control
  • Frac Tank Vapor Control
  • Fume Hood Scrubber
  • Tank Cleaning Vapor Control
  • Pipeline Vapor Control
  • And More!

Vapor Tech manufactures a complete line of specialty chemicals designed to maximize scrubber performance and removal efficiency. Some vapors, like common acids, do not require specialty chemicals. Call Vapor Tech and we will recommend the proper chemical media needed for your application.

Maximum Flow Rate (CFM) 1250
Minimum Flow Rate (CFM) 50
Maximum Pressure (PSI) 1
Maximum Temperature (°F) 140
Pressure Drop Across System (@ 500 CFM) Approximately 3” of water
Pressure Drop Across System (@ 1000 CFM) Less than 7” of water

Overall Unit Footprint (Scrubber Skid) 6’ x 6’L
Optional Carbon Bed Footprint 4’ x 4’
Empty Weight (Pounds) 1500
Vapor Inlet 6” Flange
Vapor Outlet 6” Flange
Number of Towers 1
Tower Diameter (Inches) 24
Packing Height (Feet) 7
Reservoir Capacity (Gallons) 450
Re-Circulation Pump Type Air Diaphragm & Magnetic Drive (460V)
Number of Pumps 2
Utility Required for Pump Compressed Air or Nitrogen / 230/460V for Mag Drive
Pump Air Consumption (SCFM) 65
Available Blowers Air-Horn / 600 CFM Electric
Unit Equipped with Mist Eliminator? YES
