Steel Vapor Scrubber Systems

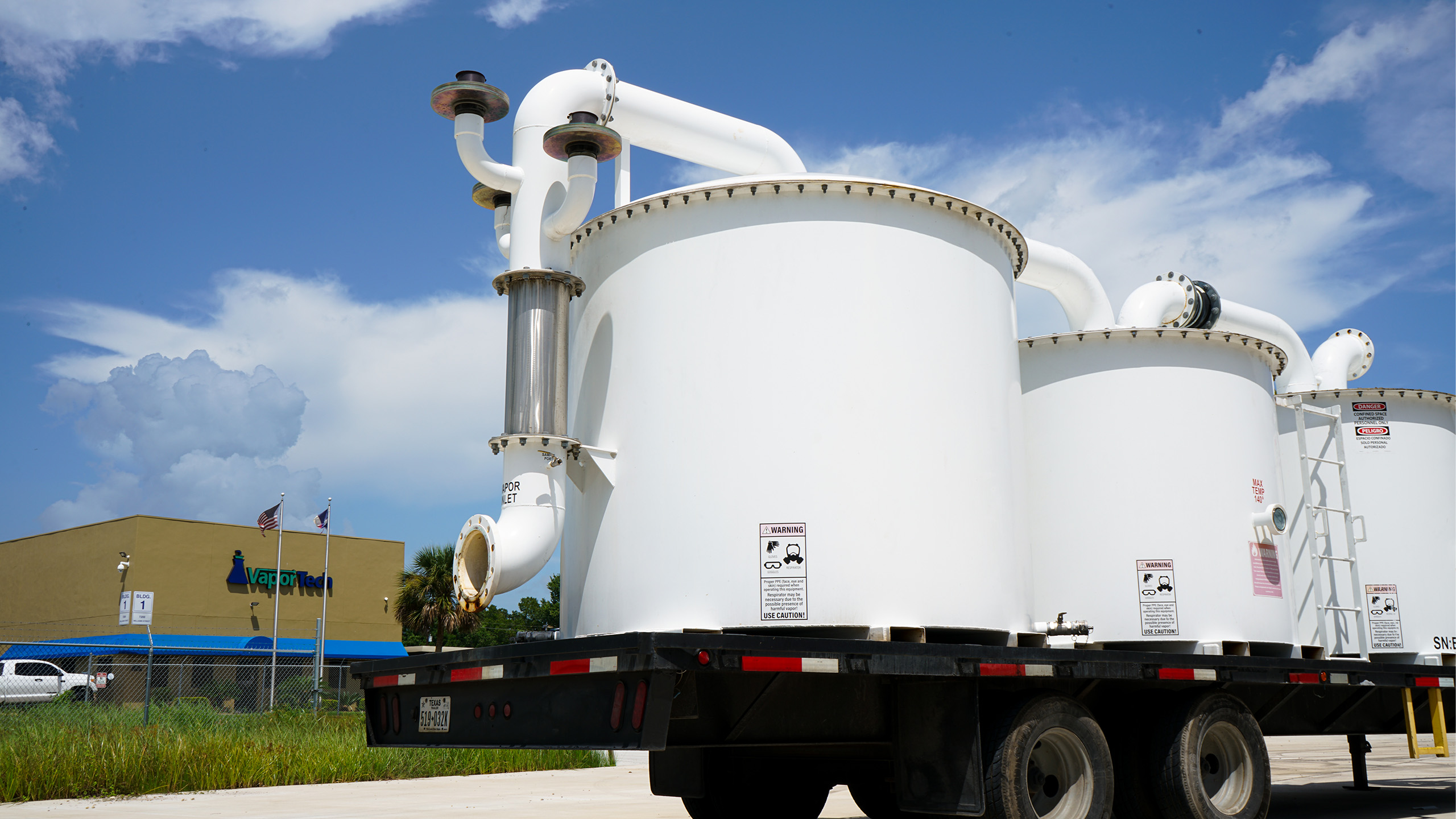

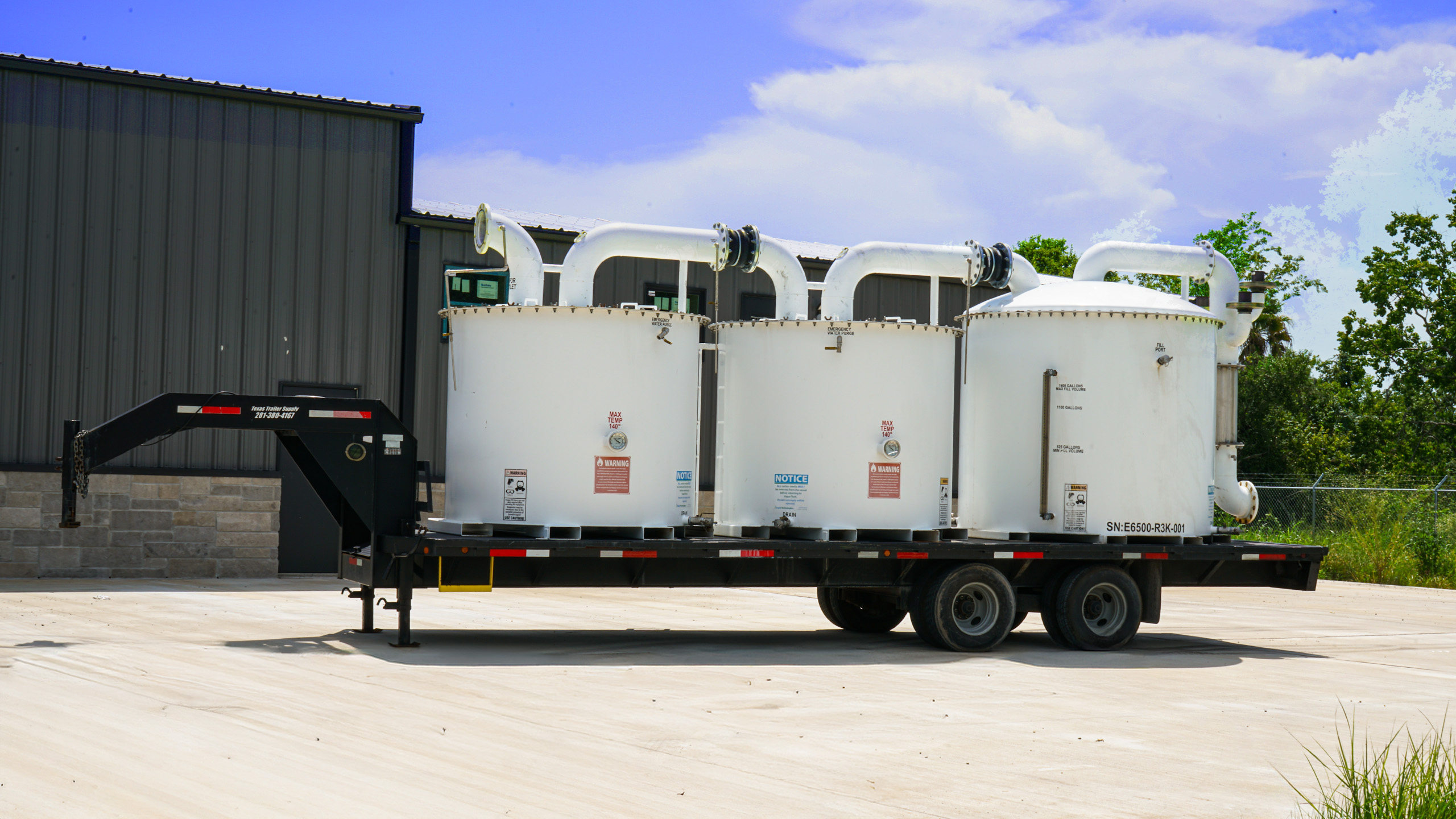

E6500-R3K High Volume Scrubber

Trailer mounted wet scrubber followed by twin 3000# Radial Carbon Beds. Designed for flows up to 6500 CFM with low pressure drop. Excellent for tank venting, hydroexcavation vapor control, airmover exhaust, GAP Vac exhaust and many other applications.

  • Hydro-Excavation Vapor Control
  • Gap-Vac Exhaust Vapor Control
  • Tank Venting
  • Pipeline Venting
  • Vacuum Truck Vapor Control

Maximum Flow Rate (CFM) 6500
Minimum Flow Rate (CFM) 250
Maximum Pressure (PSI) 5
Maximum Vacuum (Hg) Not designed for vacuum
Maximum Temperature (°F) 180°F
Pressure Drop Across System (@ 4500 CFM) Approximately 45” of water
Minimum Scrubber Liquid Level (Gallons) 825
Maximum Scrubber Liquid Level (Gallons) 1450
R3K Radial Carbon Bed Volume (Pounds) 3000

Unit Footprint (Trailer) 29’L x 8’W
Unit Height (Feet) 13’
Vapor Inlet (Inch & Type) 10” 150# Flange
Vapor Outlet (Inch & Type) 10” 150# Flange
PRV Weighted Pallets (Set for 5 PSI)
Trailer Dual Tandem (Dual 10K Axles)
Removal Efficiencies for Liquid Scrubber As High as 98% with Fresh Chemical Media
Total System Removal Efficiency (with Carbon Polishing) 99.999% (Until Breakthrough for Most Compatible Vapors)
Internal Distributors and Media (Scrubber & Radials) Stainless Steel
