Rental Equipment

SST-20 Vapor Scrubber

Dual column stainless steel scrubber for vapor flows up to 750 CFM. Unit has twin 20" columns and is skid mounted. This unit comes equipped with a magnetic-drive pump (primary) and an air diaphragm pump (backup). Large 20" clean-out ports make maintenance on the reservoir quick and easy. This unit is available for sale and also available in our rental fleet.

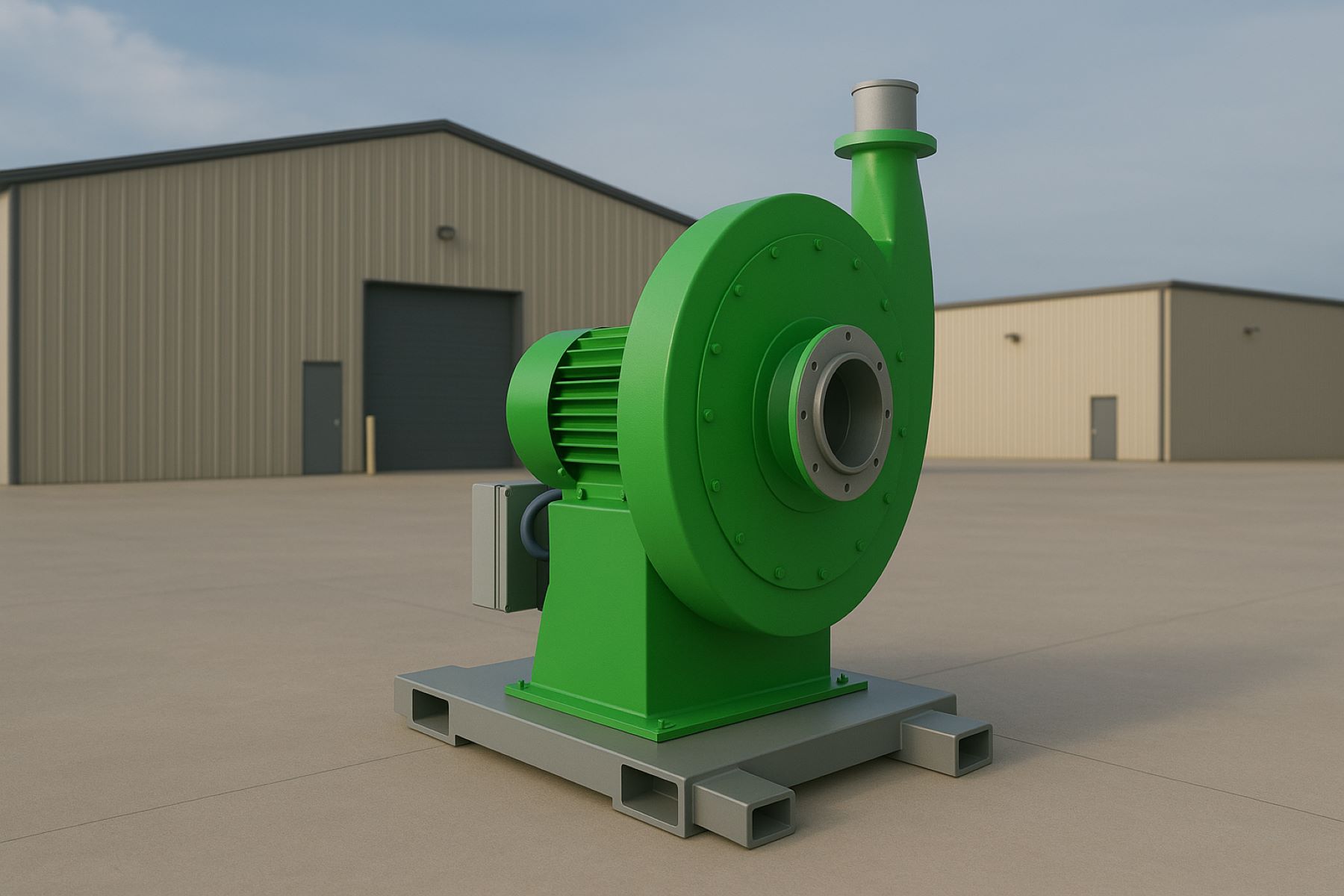

HP750-VFD Blower

HP750-VFD High Pressure Blower (VFD Controlled) is a centrifugal blower designed for 750 CFM @ 76.9" of water. Great for bubble-up scrubbers and other applications with higher pressure drop. This unit is equipped with VFD to control and modulate airflow. Available for rent or sale.

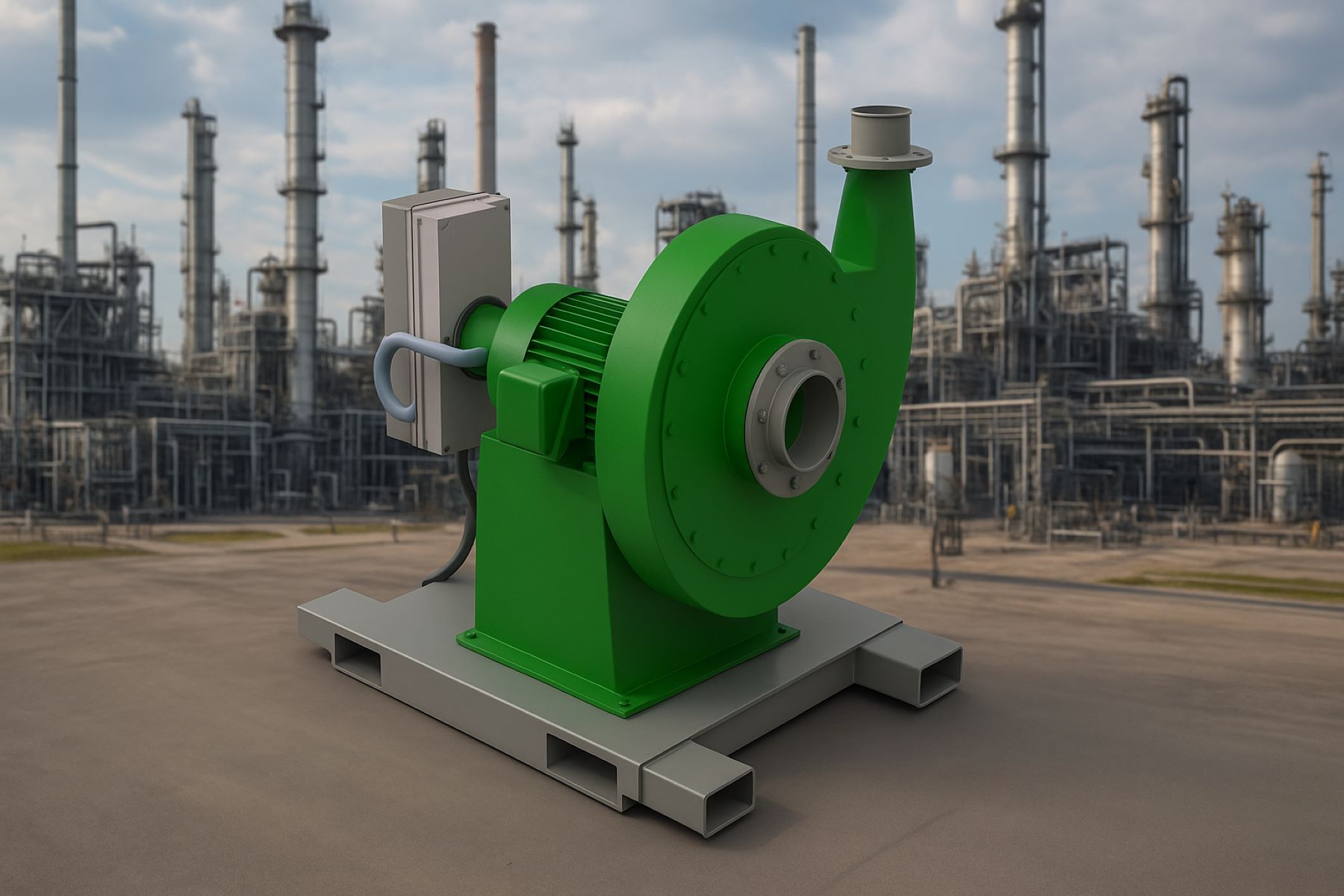

HP750 Blower

HP750 High Pressure Blower is a centrifugal blower designed for 750 CFM @ 76.9" of water. Great for bubble-up scrubbers and other applications with higher pressure drop. This unit has manual damper for flow modulation. VFD version available (HP750-VFD Blower). Available for rent or sale.

SST-40 Vapor Scrubber System

The SST-40 vapor scrubber system is a trailer-mounted system comprised of a dual stainless steel packed-bed liquid scrubber followed by a 2000# carbon polisher and a 1500 CFM blower. Excellent for remote jobs and projects. Applications include tank cleaning, vessel and line cleaning, tank degassing and more. Overall system efficiency as high as 99.999%. Available for sale or rent. Skid mounted versions available.

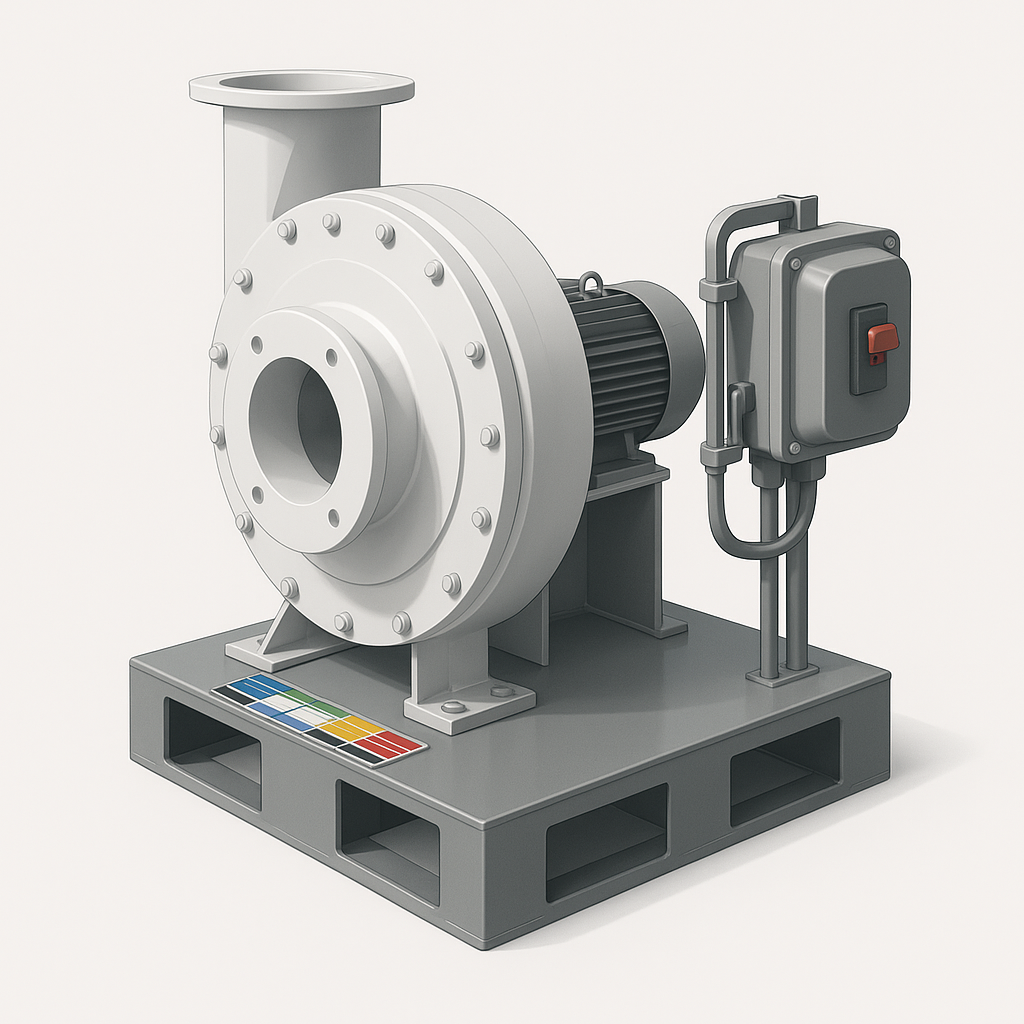

1500 CFM Steel Blower

Vapor Tech carries a 1500 CFM steel blower (aluminum impeller) which is skid-mounted (with fork slots). Unit is rated for 1500 CFM @ 22" of water. Includes class 1, div 2 starter box (460V). Unit is designed for non-corrosive applications. Includes damper valve.

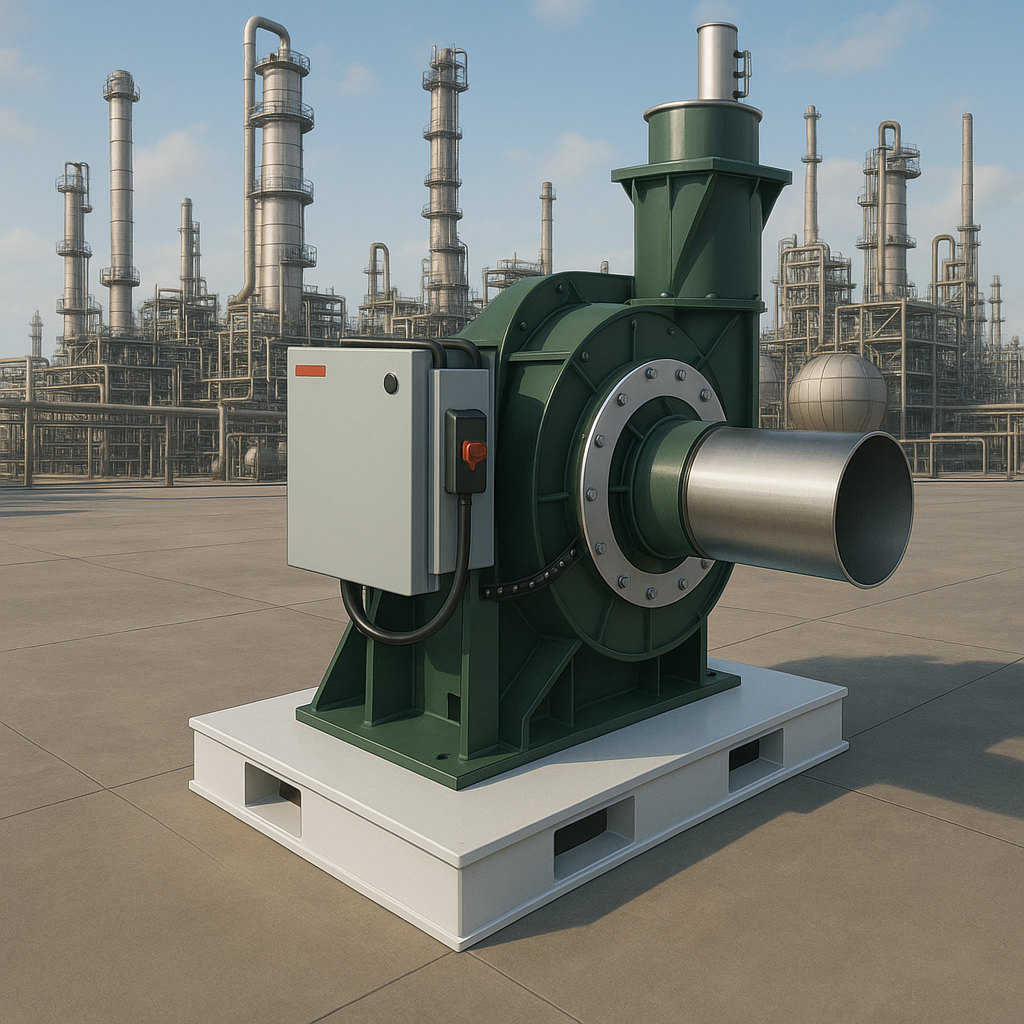

10,000 CFM Blower Rental

Vapor Tech offers a 10,000 CFM centrifugal blower for rent. This unit is VFD driven and includes ultra-quiet sound enclosure which meets California decibel ratings. Unit is rated for 10,000 CFM @ 22" of water. Includes enclosure fan to prevent overheating. VFD allows for variable CFM throughput. Available for short or long term rental.

STORM 14 Poly Blower

The STORM 14 rental blower is a skid-mounted poly blower capable of 800 CFM @ 6.5" of water. Unit includes poly skid with fork slots for easy mobility. 460V power with TEFC enclosure. Available for weekly or monthly rentals.

Carbon Drum Blower (Air)

The Airtech 55 blower is an air-operated blower which is completely explosion-proof. This blower assembly bolts to our VP55 carbon adsorber and is able to generate up to 125 CFM of suction through the carbon drum. Includes regulator and filter as well as air valve. May be easily moved from drum to drum.

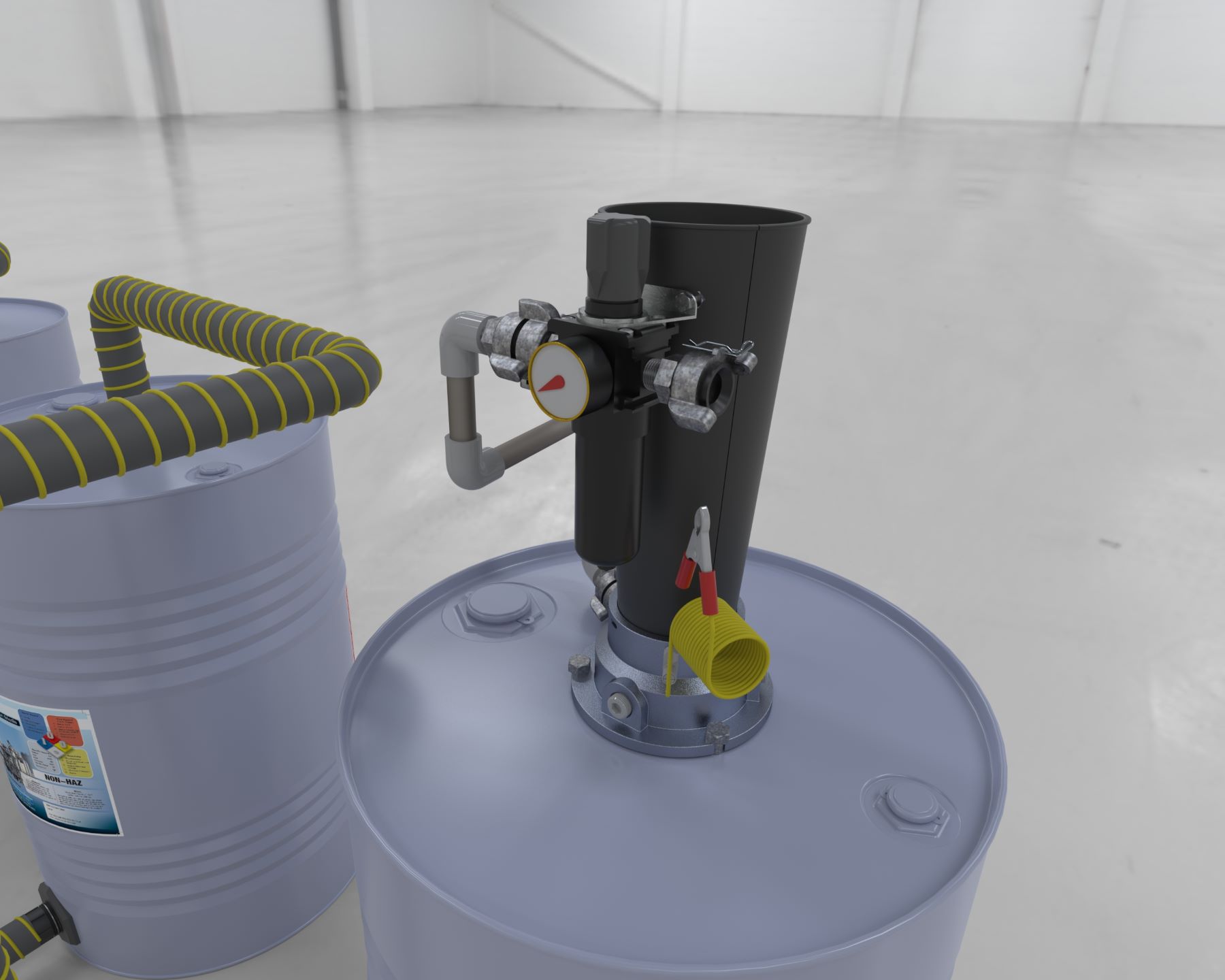

Pneumatic Venturi Blowers

These units are great for applications which do not have large amounts of pressure drop. Furthermore, they are compact and when grounded offer explosion-proof (class 1, div 1) protection. These operate off of compressed air or nitrogen and do an excellent job providing suction for many types of applications. Some include general tank venting, scrubber system venting, carbon system venting, process venting, etc.

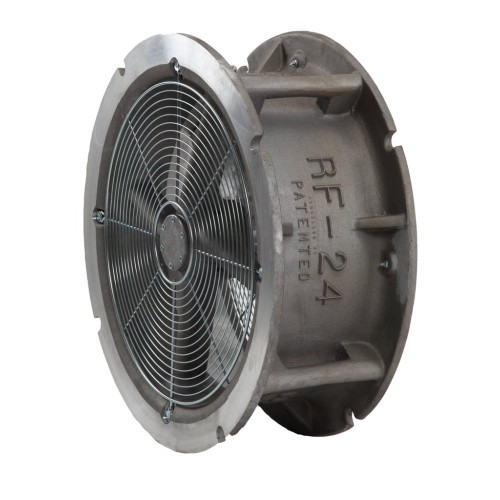

Coppus Blowers

A step up from a venturi-blower is a coppus fan. A coppus fan uses compressed air to spin blades located in an enclosure. High flow rates are possible with a coppus blower if pressure drop is kept low. Even in you have large pressure drop these blowers will perform well and can achieve up to 30% of their maximum flow in most cases. These are mostly used for large tank venting as well as for providing adequate flow to scrubbers and carbon systems. Coppus blowers are considered TEXP (explosion-proof) and can be used in hazardous locations. 20" and 24" diameter versions available.

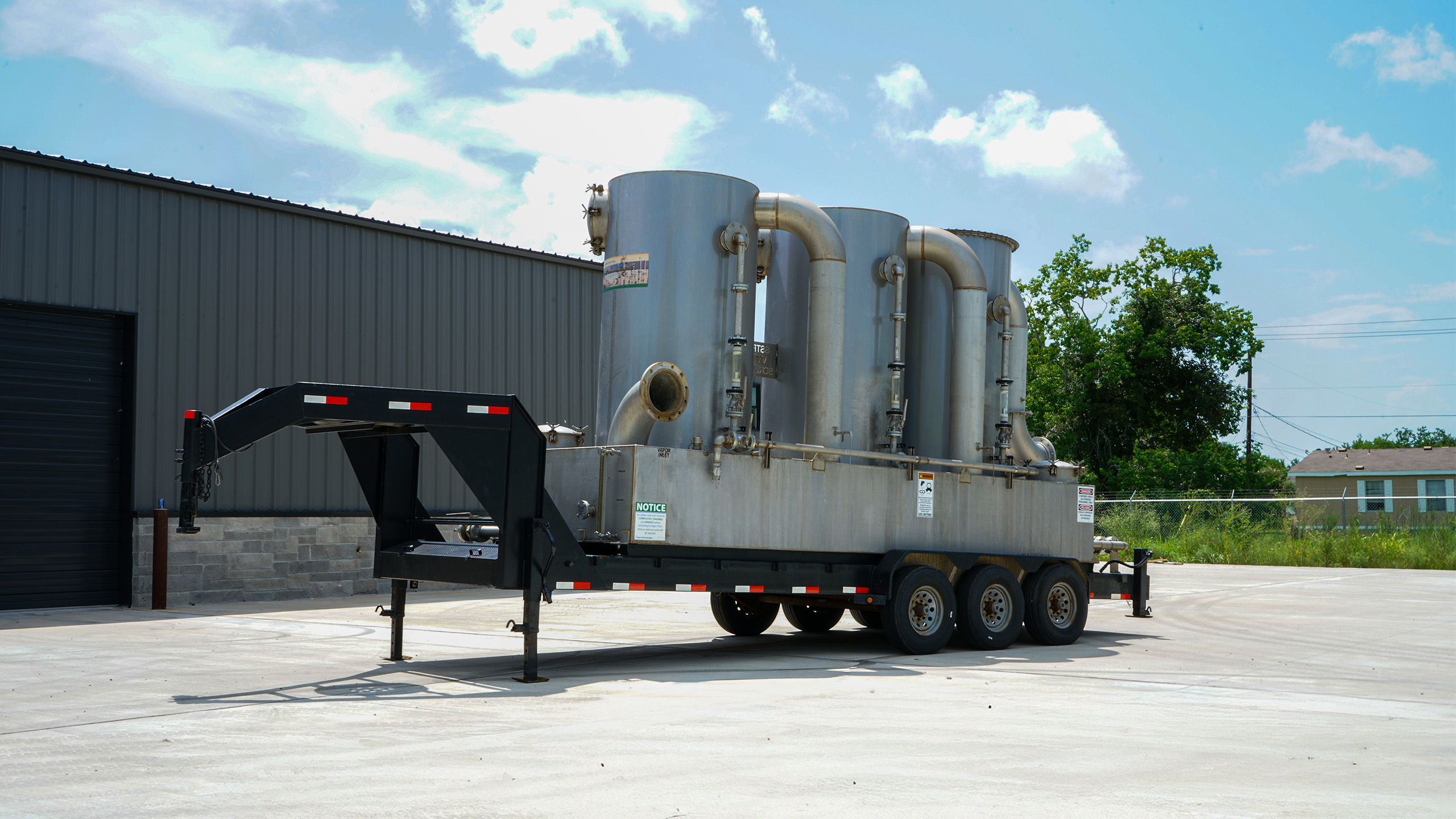

SSTR-54 Triple Column Scrubber

This system is made of stainless steel and mounted to a gooseneck trailer. Vapors are scrubbed through three, 54" diameter towers (8 foot tall each). Unit has on-board pump (460V) which provides flow to all three towers. Third tower has full diameter mist eliminator which removes mist particulate from exiting the scrubber. This scrubber is rated up to 6,000 CFM. Large 1800 gallon reservoir greatly enhances run times which means less down-time changing out solutions. As a separate item, a radial carbon adsorber (R4K Radial) is available to polish vapors up to 99.99%. This unit simply sits behind the scrubber system and may be connected to a blower to help evacuate tanks or process equipment.

Eliminator 550 304S Scrubber System

The E550-304S is a 'forced induction' vapor scrubber unit. The main shell and internals of this unit are made from 304 stainless steel for corrosion resistance and longevity. These units use the force of the vapors through the unit to come in contact with our specialized stainless distributors which are located inside of the unit. The primary distributor creates a 360 degree pattern for the vapors to radiate out to the main distributor. The main distributor has enormous surface area yet provides almost no back-pressure inside of the unit. It is here where liquid-to-vapor cohesion takes place. This transfer zone yields extremely high removal efficiencies (high as 98%) for compounds such as hydrocarbons.

Eliminator 550-N1K Scrubber System

The E550-N1K is a complete trailer-mounted vapor scrubber unit designed for vapor flows up to 500 CFM. This complete system has an Eliminator 550 vapor scrubber unit, twin 1000 pound NOVAC carbon vessels and flame arrestor. Options such as nitrogen purge system and electric blower are available. Typically these units are being used to filter vacuum truck exhaust but they do have many other other uses including being used as a VRU for tank venting. Overall efficiency of this system is over 99.99%. Trailer mounted system makes it ideal for in-plant services. Very easy to tow behind a vehicle and set in place for operation.

PET-48 Poly Vapor Scrubber

The PET-48 is an all-poly liquid vapor scrubber designed for airflows up to 4500 CFM. This unit is manufactured from 100% poly materials which makes it ideal for corrosive applications. Great for neutralizing vapors including acids, bases, H2S, ammonia, chlorine and many more. Removal efficiencies as high as 99.9% possible. Skid mounted for easy mobility. Available for rent or sale.

PPT-24 Poly Vapor Scrubber

The PPT-24 vapor scrubber system is an all-poly unit designed for applications where steel is not suitable. This includes acids, chlorine and chlorinated vapors or chemicals. This unit is skid mounted and comes with an electric (main) and air-operated diaphragm (backup) pump. Good for vapor flows up to 1250 CFM. The PPT-24 has two towers with a total packing height of over 7'. The unit has a large solution reservoir (450 gallons) which reduces down-time to change spent chemical media. Options such as pH control and blowers are available. Available for purchase or rental.

NOVAC 750 Carbon Vessel

The NOVAC 750 is a continuation of our popular NOVAC series carbon adsorbers. Designed for applications within the 20-550 CFM flow range. Includes temperature gauge and water/nitrogen purge system which greatly increases the safety of the unit and limits chance of thermal event or bed fire. Unit holds approximately 750 pounds of activated carbon media. The NOVAC style units are unique in that they do not require vacuum service to unload spent media. When media is spent, simply raise unit into the air with forklift, place a carbon sack under the discharge valve, and then open the bottom discharge valve. Save valuable time and resources! Never wait for a vacuum service or cyclone again! Available for rental or purchase.

NOVAC 1000 Carbon Vessel

The NOVAC 1000 is a one-of-a-kind carbon vessel. This unit holds 1,000# of GAC and is good for airflows up to 1000 CFM. What makes it unique is the fact that is does not require spent carbon removal service such as a cyclone or vacuum truck to remove spent carbon. When your carbon is spent simply lift the NOVAC 1000 with a forklift into the air, attach a fresh carbon sack to the bag hooks under the unit, and then open the bottom lever valve to allow the carbon to flow out of the unit. You can remove spent carbon and add fresh carbon back into unit within 15 minutes. Not only are these units easy to service, but they are the safest carbon beds on the market, hands down. Each NOVAC 1000 has dual temperature gauges with deep wells. These give immediate core temperature readouts and can signify if you have a thermal issue. Each unit also has an emergency liquid purge system. If temperatures do get out of hand, you can attach water to the valve located on the unit and open it to saturate the entire unit with fresh water. This will greatly help avoid a bed fire. Lastly, all NOVAC 1000 units have ladders which safely allow access to the top of the unit. Units available for rental or purchase.

NOVAC 2000 CARBON VESSEL

The NOVAC 2000 is a one-of-a-kind carbon vessel. This unit holds 2000# of GAC and is good for airflows up to 1500 CFM. What makes it unique is the fact that is does not require spent carbon removal service such as a cyclone or vacuum truck to remove spent carbon. When your carbon is spent simply lift the NOVAC 2000 with a forklift into the air, attach a fresh carbon sack to the bag hooks under the unit, and then open the bottom lever valve to allow the carbon to flow out of the unit. You can remove spent carbon and add fresh carbon back into unit within 15 minutes. Not only are these units easy to service, but they are the safest carbon beds on the market, hands down. Each NOVAC 2000 has dual temperature gauges with deep wells. These give immediate core temperature readouts and can signify if you have a thermal issue. Each unit also has an emergency liquid purge system. If temperatures do get out of hand, you can attach water to the valve located on the unit and open it to saturate the entire unit with fresh water. This will greatly help avoid a bed fire. Lastly, all NOVAC 2000 units have ladders which safely allow access to the top of the unit. Units available for rental or purchase.

R4K Radial Carbon Vessel

Vapor Tech's R4K radial carbon bed adsorber is designed for airflow rates up to 10,000 CFM with low pressure drop (when compared to traditional linear beds). Unit holds 4000# of vapor phase carbon media. This adsorber includes Vapor Tech's one-of-a-kind safety features such as multiple temperature gauges as well as liquid/nitrogen purge system. Top easily removes for removal and loading of carbon media. Large internal manways provide easy access to internals. Main internals are 304 stainless steel. There is no other radial carbon bed on the market like this unit! Comparable systems for this flowrate are typically 8'W x 22'L and hold 10,000# of carbon. This unit is excellent for use in areas where space is limited. Large fork slots make the unit easy to move around. Available for sale or for rental.

PPS-24 Vapor Scrubber System

The PPS-24 vapor scrubber unit is an all-poly packed-column vapor scrubber designed for corrosive applications where steel is not suitable (example: acids, chlorinated products). This unit skid mounted and is designed for flows up to 1250 CFM. Unit has main magnetic-drive re-circulation pump and backup air diaphragm pump. Solution reservoir holds up to 450 gallons. Efficiencies as high as 99.99% possible. Options such as pH Control, blowers, level control, immersion heater and more are available. Contact a sales associate for details.
